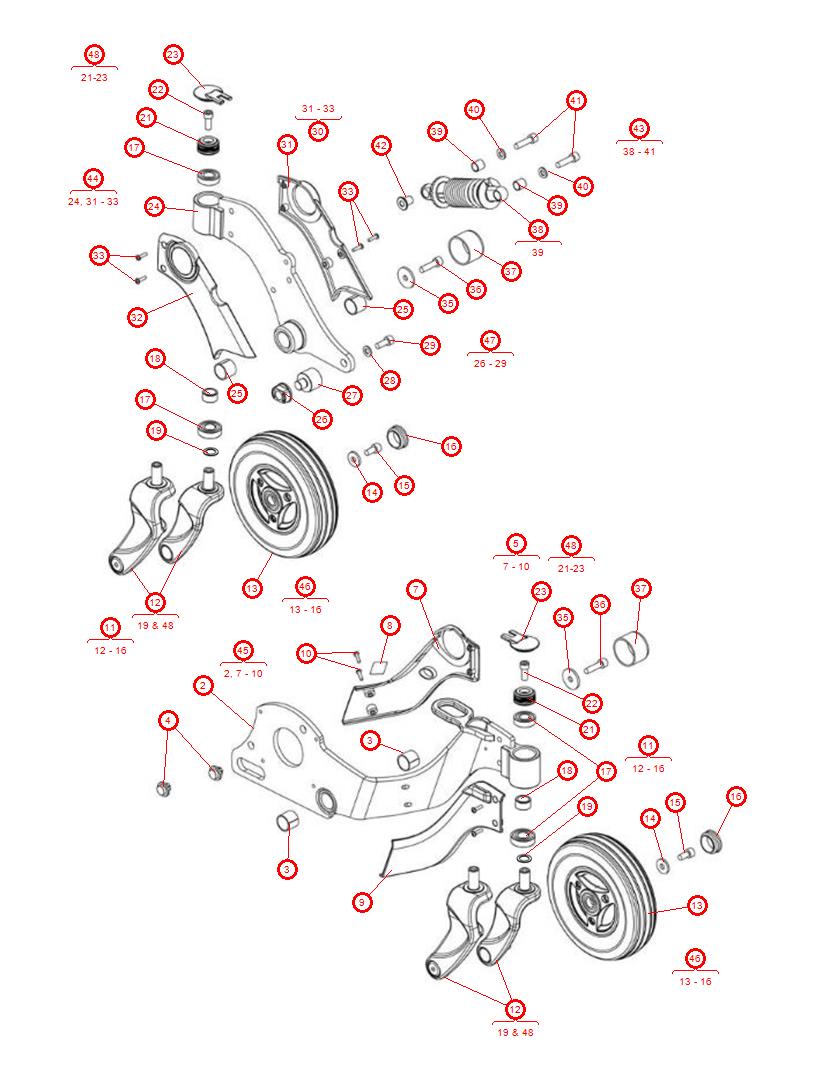

M300/M400 Base > Swingarm - Left
| Pos | Part | D365 Part | Description |
|---|---|---|---|
| 3.1 | 612745-99-0 | 612745 | SLIDE BEARING 22/25x20SBT ***EACH*** |
| 4.1 | 1828899 | 1828899 | SPACER, FRONT SWINGARM M300 M400 M300HD, EACH |
| 5.1 | 1826687 | 1826687 | COVERSET SWING ARM FRONT LEFT M300/M400,incl4screw |
| 8.1 | 312872-99-2 | 312872 | DECAL |
| 10.1 | 1832880 | 613078 | TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM |
| 11.1 | 1830338 | 1830338 | 6" KIT GRAY |
| 11.2 | 1831051 | 1831051 | 6" CASTER KIT,ALL4, BLACK w/FLAT BLACK RIMS & FORKS |
| 12.1 | 1828315 | 324235 | WHEEL FORK ALUMINUM, LEFT M300 M400 CORPUS & HD |
| 12.2 | 1830339 | 1830339 | WHEEL FORK, LEFT FOR 6" CASTER WHEELS, MWD |
| 12.3 | 1828653 | 324388 | WHEEL FORK KIT ALUMINUM L&R, 8", M300 M400 M300HD |
| 12.4 | 1832134 | 324396 | WHEEL FORK KIT ALUMINUM FOR 6" CASTERS,LEFT&RIGHT |
| 14.1 | 305390-99-0 | 305390 | WASH 8.5x23x3 fzb |
| 15.1 | 613088-99-0 | 613088 | BOLT MC6S 8x16 fzb ESL 10.9 C1 ISO4762 DIN267-28 |
| 16.1 | 601068-00-0 | 601068 | PLAST PLUG SFL 35 300 350 500 K450 MWD M1 |
| 17.1 | 600752-99-0 | 600752 | BALL BEARING, SWINGARM AND WHEELS, EACH |
| 18.1 | 1831010 | 318410 | SPACER O16xO22x12.5 CASTERS AND SWINGARM |
| 19.1 | 1828317 | 612383 | SHIM WASHER,WHEELFORK MWD WASHER DB15x22x1 DIN988 |
| 21.1 | 330974 | ANTI FLUTTER 12 pcs | |
| 23.1 | 1832866 | 330833 | COVER, WHEELFORK/SWING ARM, EACH, M3 M5 M1 F3 F5 |
| 25.1 | 612745-99-0 | 612745 | SLIDE BEARING 22/25x20SBT ***EACH*** |
| 28.1 | 600239-99-0 | 600239 | WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED |
| 29.1 | 613901-99-0 | 613901 | Screw ISO 4762 M8x20 Fe/Z LOCKING COAT DIN 267-28 |
| 30.1 | 1826683 | 1826683 | COVERSET SWING ARM REAR LEFT M300/M400,incl4screw |
| 33.1 | 1832880 | 613078 | TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM |
| 35.1 | 316714-99-0 | 316714 | WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3 |
| 36.1 | 601075-99-0 | 601075 | BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5 |
| 37.1 | 1826692 | 1826692 | COVER BEARING RACE SWING ARM M300/M400 |
| 40.1 | 600239-99-0 | 600239 | WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED |
| 41.1 | 601075-99-0 | 601075 | BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5 |
| 42.1 | 1833014 | 331155 | SOCKET, SHOCK/ FLEXLINK M3 M5 M1 F3 F5 M3/400 &HD |
| 43.1 | 1826691 | 1826691 | SHOCK ABSORBER M300/M400 INCLUDING HARDWARE, EACH |
| 44.1 | 1827178 | 1827178 | SWING ARM LEFT REAR INCL. COVER KIT, M300/400 |
| 45.1 | 1827177 | 1827177 | SWING ARM LEFT FRONT INCL. COVER KIT, M300/400 |
| 46.1 | 1826508 | 1826508 | CASTER WHEEL 200x50 GRAY 8" SOLID, INCL HDW, MWD |
| 46.2 | 1830337 | 323098 | CASTER WHEEL,150x50, GRAY 6" SOLID, INCL HDW,MWD/HD |
| 46.3 | 1830674 | 323769-99 | CASTER WHEEL,200x50 BLACK 8" SOLID,INCL HDW, MWD |
| 46.4 | 1830675 | 323768-99 | CASTER WHEEL,150x50 BLACK 6" SOLID, INCL HDW, MWD |
| 47.1 | 1826994 | 1826994 | SWING ARM BUSHING KIT M300 M400 M300HD |
| 48.1 | 1834999 | 333233 | FRICTION BRAKE,12 WASHER+ CAP&BOLT M1/3/5, F3/5 MWD |
| 48.2 | NULL | 339931 | Anti-flutter v.3, adjustable |
